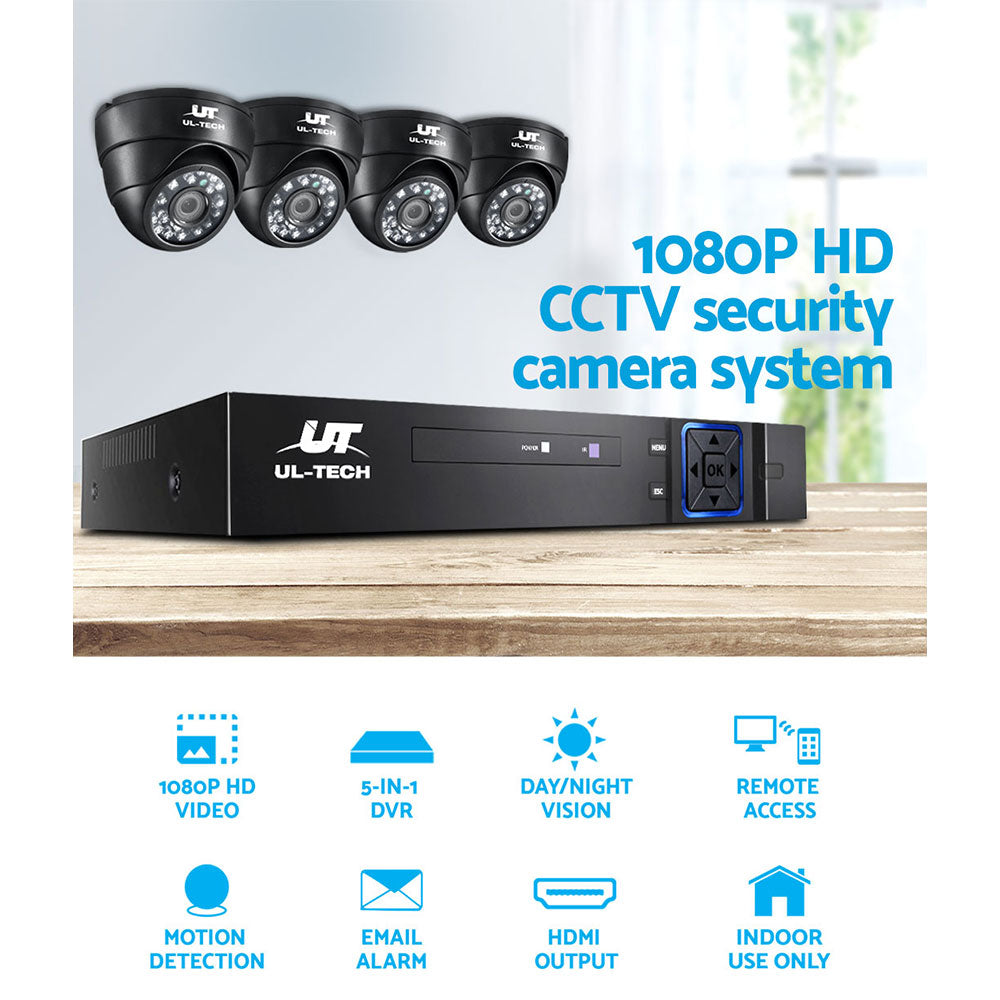

Motion detection of up to 192 areas. Infrared night vision within a 20m radius. A camera resolution of 1080P HD for live and recorded video that is supremely better than the usual 720P used in most DIY home security systems. The UL-Tech CCTV 1080P 8-channel CCTV Security Camera is simply one of the best home surveillance systems that you can get in the market today.
Utilizing the latest security monitoring technology, our UL-Tech CCTV system is featured with record, playback, search modes and many more. The high resolution makes it easy to identify facial features, license plates and clothing patterns for total convenience in the event of any home invasion or break-in. With its huge hard disk storage, the System enables you to review your recordings even from quite a while back. You’ll be glad to know too that your data will be also be protected from any power outage.
The CCTV System supports P2P technology for effortless link to the internet, and the 5-in-1 DVR has video outputs via VGA and HDMI. Better still, you can access the System remotely through your smartphone or mobile device to view, capture and record with the free app and an instant email will be sent to your account if any unauthorized motion is detected. You can also customize the motion detection so that the camera will only be activated when motion is detected.
So come your next vacation or anytime that you’re not home, it’s good to know that the UL-Tech 1080P CCTV Security Camera is your all-seeing eye on your property every single moment of the day and night. Install one today for total peace of mind.
Note: Camera angle only can be adjusted by hand manually
Note: This Camera is not for outdoor use
Features
1080P HD
8 Channel 1080N 5-in-1 DVR
Supports AHD, TVI, CVI, CVBS and IP camera
Support P2P technology
High resolution cameras with Built-in IR-cut
Internal hard disk for video storage (1TB Hard disk included)
Remote access
View on phone or computer by logging in free app
Customizable motion detection
Instant E-mail alarm
HDMI and VGA outputs
Indoor use
Support USB backup and storage
Data protection when power outage
Support 8 channel simultaneous live viewing via smart phone
Support Capture and Record in your smart phone
Support Cloud System for Remote Access/Support HDMI Output
Easy to install
Bonus 1TB hard drive and USB mouse
Specifications:
Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 8*1080N
Encode ability: 8*1080N@12fps
Decode ability: 8*1080N@12fps
Multi-mode input: analog: 8*1080N
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 16*1080P; 16*960P; 9*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing
Local playback: 8ch (local input mode)
Seatrch mode: Search by time, calender, event, channel

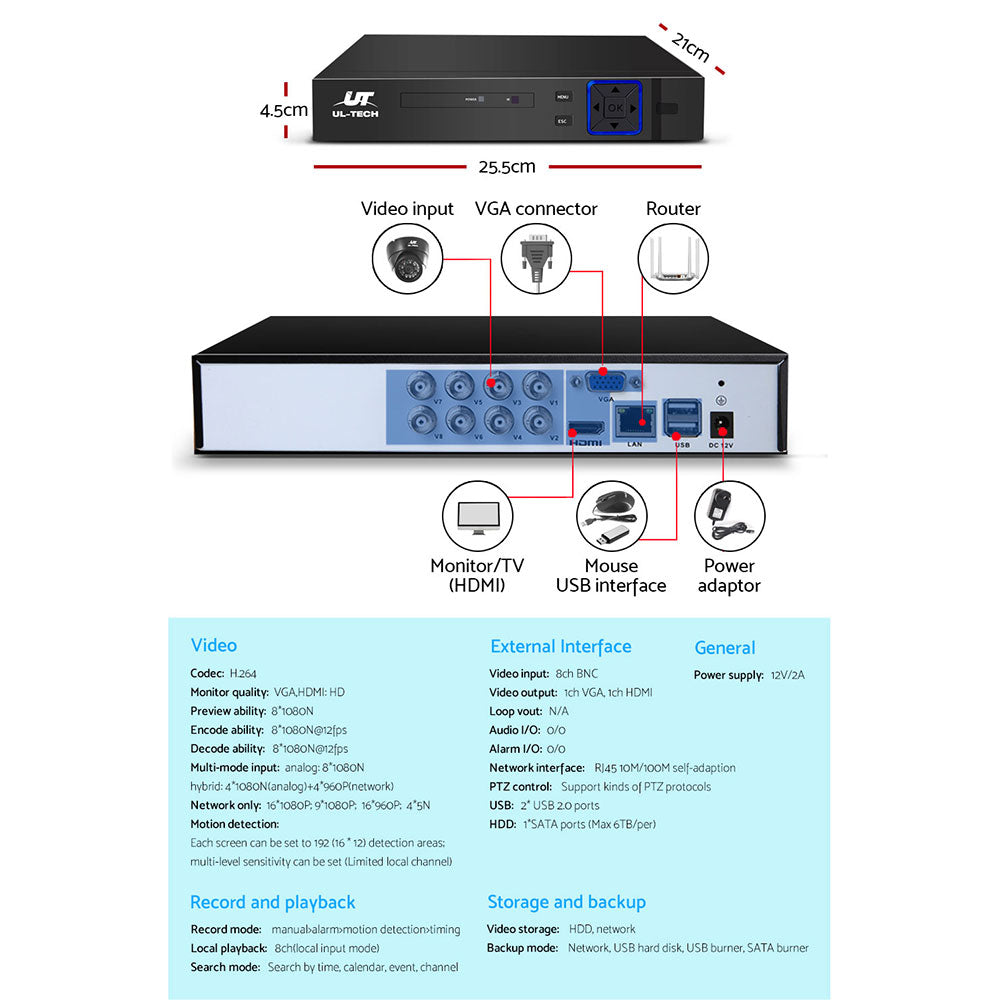

External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Camera:
Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system: PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W

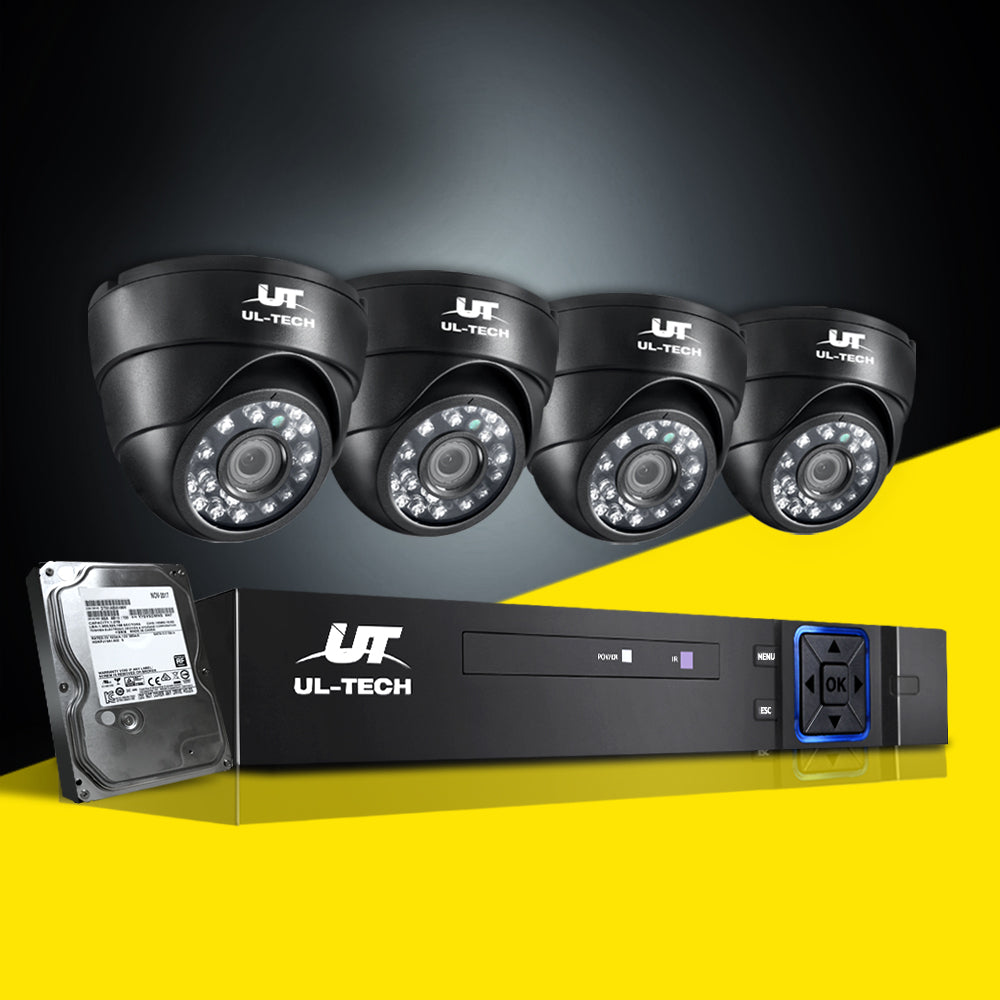

Package Content

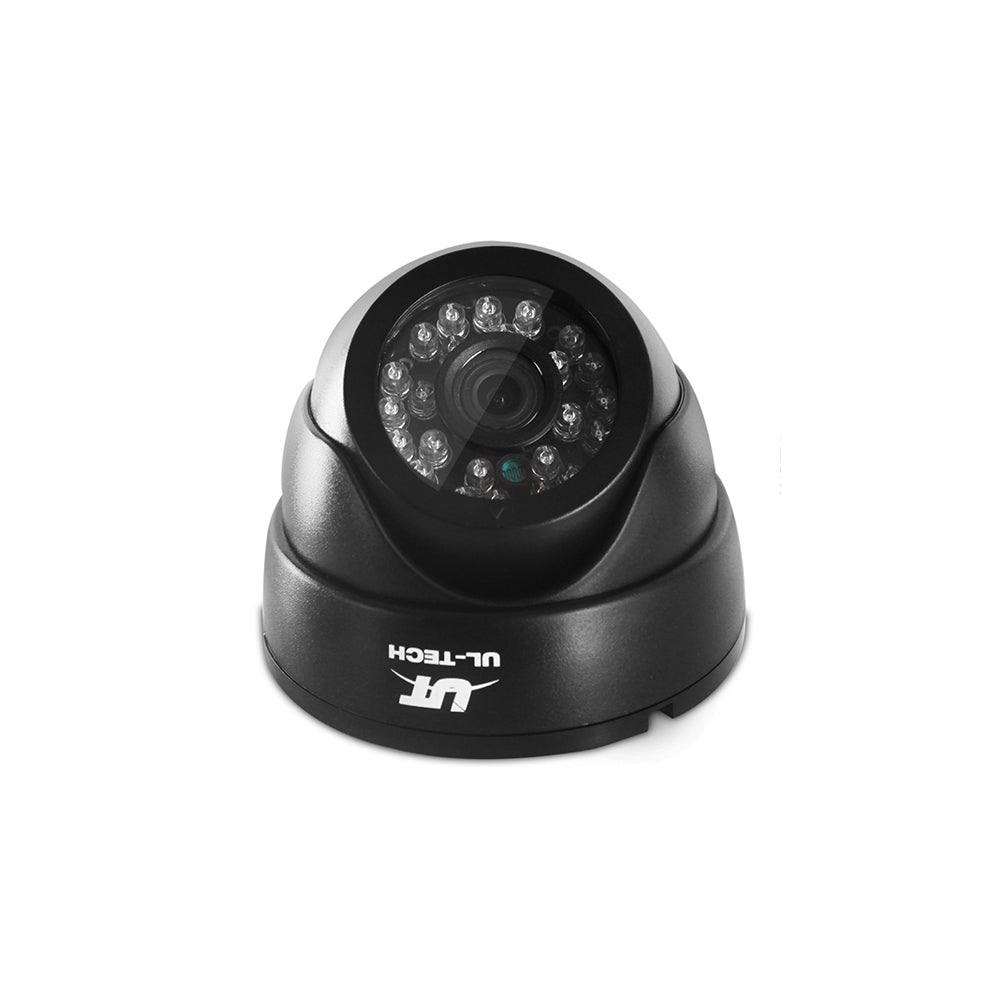

4 x UL-tech AHD Camera
1 x 1080 8CH DVR

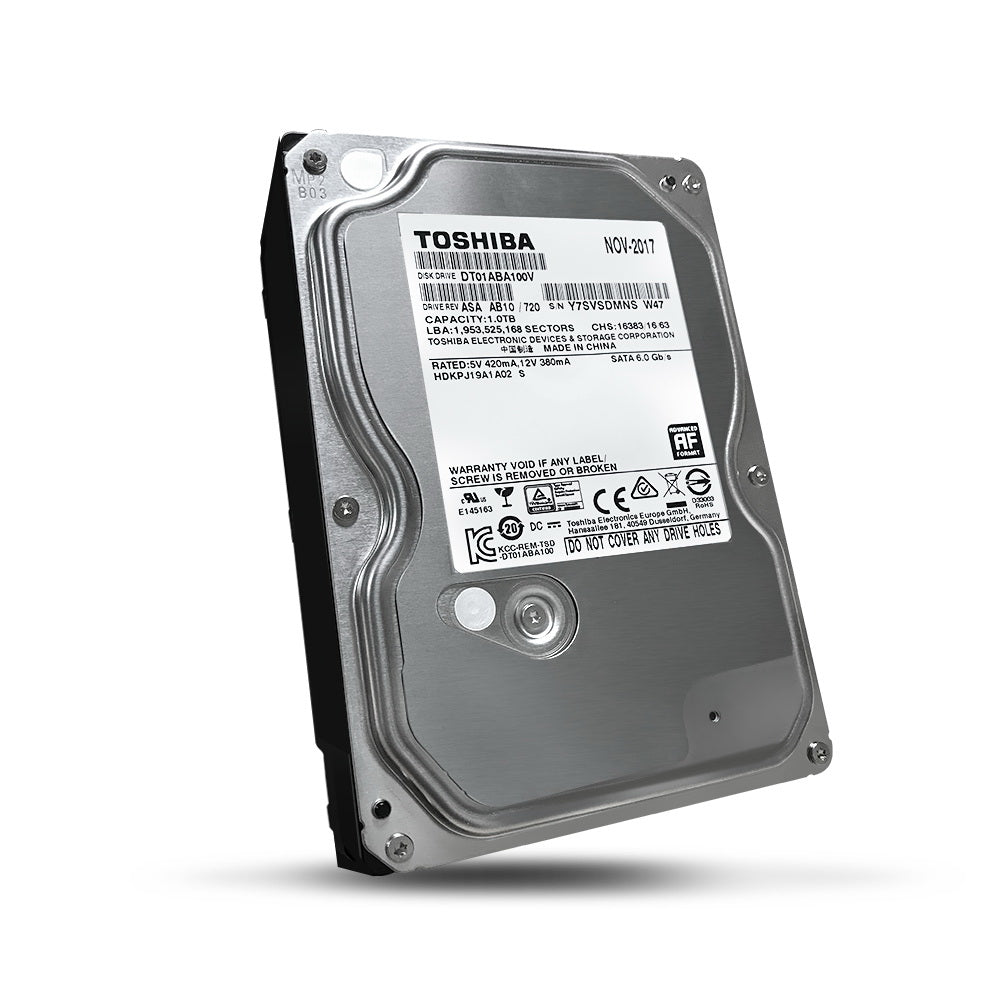

1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC & Power Cable
2 x 1-4 Splitter Cable
1 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
